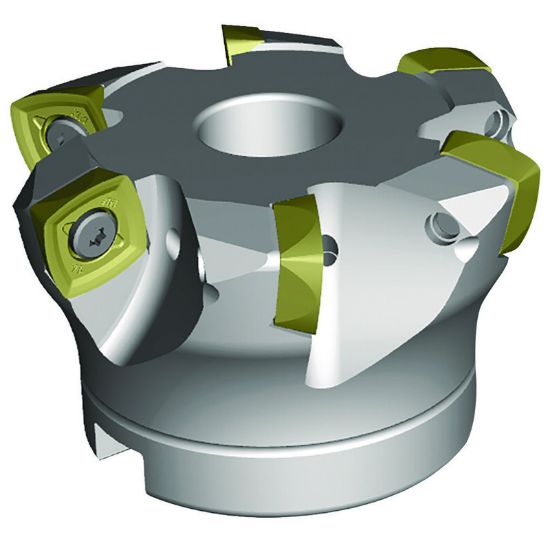

Picture of WIDIA/KENNAMETAL VXF125Z10S40XE16 Milling Cutter 4.779 Cutter Diameter Face Mill 1.574

WIDIA/KENNAMETAL VXF125Z10S40XE16 Milling Cutter 4.779 Cutter Diameter Face Mill 1.574

ANSI: VXF125Z10S40XE16

ISO: VXF125Z10S40XE16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597780
Delivery date: 3-5 days
$969.12
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Application Copy Milling, Feed Milling, Face Milling, Slot Milling, Ramp Milling
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Cutter Dia 4.7795 121.40MM
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 1605
Depth Of Cut Max 0.1378
Cut Dia Min 4.0209 102.13MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 10
Overall Len 2.4804 63.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style XE
Max Ramp Angle 0.32°
Coolant Thru Yes
