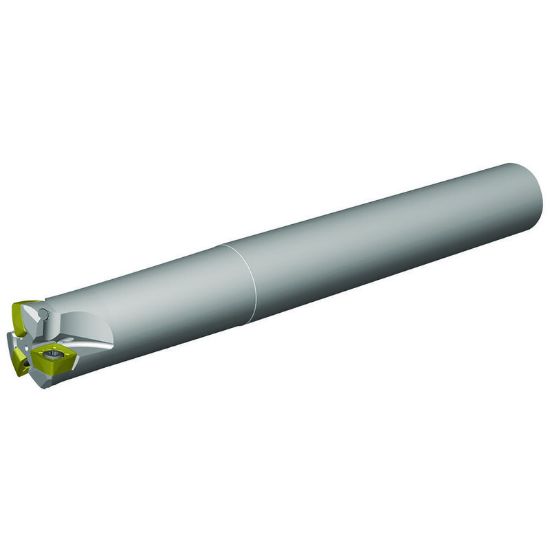

Picture of WIDIA/KENNAMETAL VXF125Z03C125XD12L1000 Milling Cutter 1.200 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VXF125Z03C125XD12L1000 Milling Cutter 1.200 Cutter Diameter Cylindrical 1.250

ANSI: VXF125Z03C125XD12L1000

ISO: VXF125Z03C125XD12L1000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6733677
Delivery date: 3-5 days
$413.97
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Insert Size Ic 1205
Tool Material Steel
Neck Dia 1.1417
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.0982
Cutter Dia 1.2008 30.50MM
Cut Dia Min 0.5365 13.63MM
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max Ramp Angle 2.60°
Insert Style XD
Hand R/L Right
