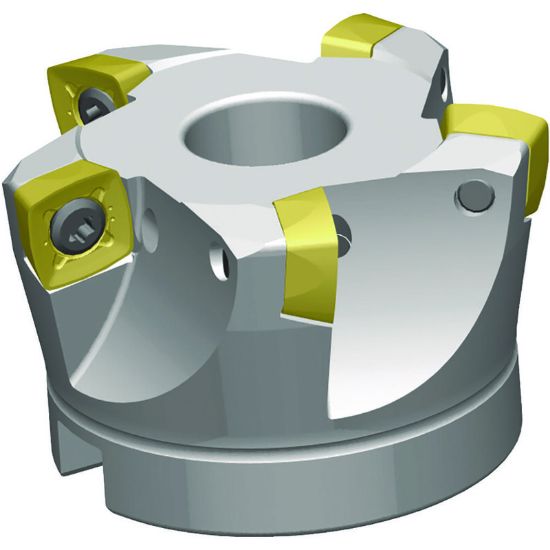

Picture of WIDIA/KENNAMETAL VXF080Z06S27XD12 Milling Cutter 3.043 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL VXF080Z06S27XD12 Milling Cutter 3.043 Cutter Diameter Face Mill 1.063

ANSI: VXF080Z06S27XD12

ISO: VXF080Z06S27XD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6596733
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Pennsylvania
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0975
Cut Dia Min 2.4331 61.80MM
Cutter Dia 3.0433 77.30MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Insert Size Ic 1205
Machine Side Connection Size 1.0630 27.00MM
Cutting & Machining Properties
Max Ramp Angle 0.50°
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style XD
Hand R/L Right
