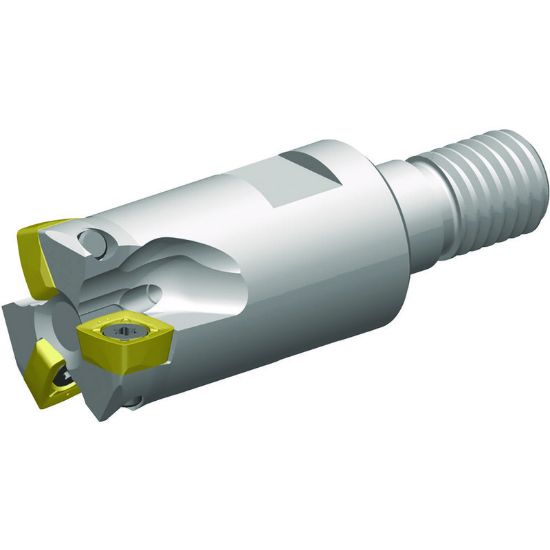

Picture of WIDIA/KENNAMETAL VXF075Z03M10XP07 Milling Cutter 0.715 Cutter Diameter Screw On M10

WIDIA/KENNAMETAL VXF075Z03M10XP07 Milling Cutter 0.715 Cutter Diameter Screw On M10

ANSI: VXF075Z03M10XP07

ISO: VXF075Z03M10XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6712878
Delivery date: 3-5 days
$289.51
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Copy Milling, Feed Milling, Face Milling, Ramp Milling
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 0.7154 18.17MM
Cut Dia Min 0.3841 9.76MM
Depth Of Cut Max 0.0354
Machine Side Connection Type Screw On
Insert Size Ic 703
Tool Material Steel
Overall Len 2.1653 55.00MM
Flutes/Inserts 3
Machine Side Connection Size M10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style XP
Max Ramp Angle 6.74°
Coolant Thru Yes
