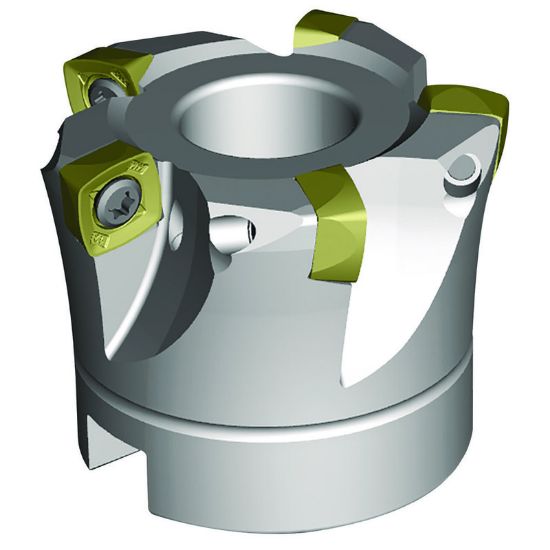

Picture of WIDIA/KENNAMETAL VXF040Z04S16XD09 Milling Cutter 1.490 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL VXF040Z04S16XD09 Milling Cutter 1.490 Cutter Diameter Face Mill 0.629

ANSI: VXF040Z04S16XD09

ISO: VXF040Z04S16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597746
Delivery date: 3-5 days
$405.08
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0591
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutter Dia 1.4906 37.86MM
Cut Dia Min 1.0346 26.28MM
Machine Side Connection Size 0.6299 16.00MM
Overall Len 1.2600 32.00MM
Insert Size Ic 904
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 0.80°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style XD
Hand R/L Right
