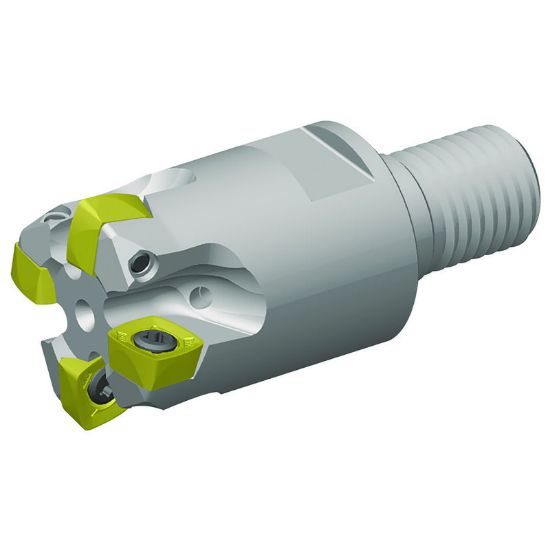

Picture of WIDIA/KENNAMETAL VXF032Z04M16XD09 Milling Cutter 1.191 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VXF032Z04M16XD09 Milling Cutter 1.191 Cutter Diameter Screw On M16

ANSI: VXF032Z04M16XD09

ISO: VXF032Z04M16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597733
Delivery date: 3-5 days
$351.75
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling, Slot Milling, Copy Milling, Ramp Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 904
Cutter Dia 1.1914 30.26MM
Machine Side Connection Type Screw On
Tool Material Steel
Cut Dia Min 0.7204 18.30MM
Flutes/Inserts 4
Depth Of Cut Max 0.0591
Machine Side Connection Size M16
Overall Len 2.6575 67.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style XD
Coolant Thru Yes
Max Ramp Angle 1.50°
