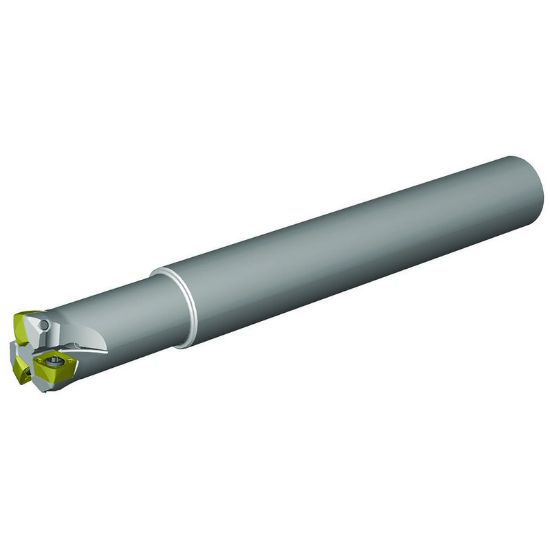

Picture of WIDIA/KENNAMETAL VXF032Z03A25XD09L200 Milling Cutter 1.191 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VXF032Z03A25XD09L200 Milling Cutter 1.191 Cutter Diameter Cylindrical 0.984

ANSI: VXF032Z03A25XD09L200

ISO: VXF032Z03A25XD09L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597743
Delivery date: 3-5 days
$413.97
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 904
Flutes/Inserts 3
Depth Of Cut Max 0.0591
Cut Dia Min 0.7204 18.30MM
Overall Len 7.8740 200.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutter Dia 1.1914 30.26MM
Neck Dia 1.1181
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style XD
Hand R/L Right
Max Ramp Angle 1.50°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
