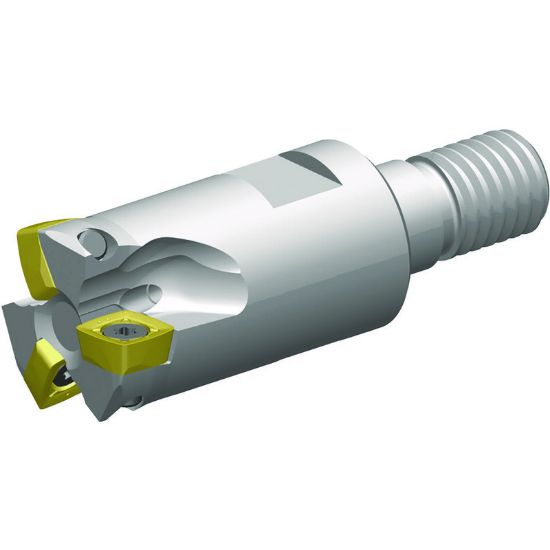

Picture of WIDIA/KENNAMETAL VXF025Z04M12XP07 Milling Cutter 0.925 Cutter Diameter Screw On M12

WIDIA/KENNAMETAL VXF025Z04M12XP07 Milling Cutter 0.925 Cutter Diameter Screw On M12

ANSI: VXF025Z04M12XP07

ISO: VXF025Z04M12XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597152
Delivery date: 3-5 days
$328.96
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0354
Neck Dia 0.4921
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 703
Tool Material Steel
Overall Len 2.2441 57.00MM
Flutes/Inserts 4
Cut Dia Min 0.6157 15.64MM
Cutter Dia 0.9252 23.50MM
Cutting & Machining Properties
Hand R/L Right
Insert Style XP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 2.20°
