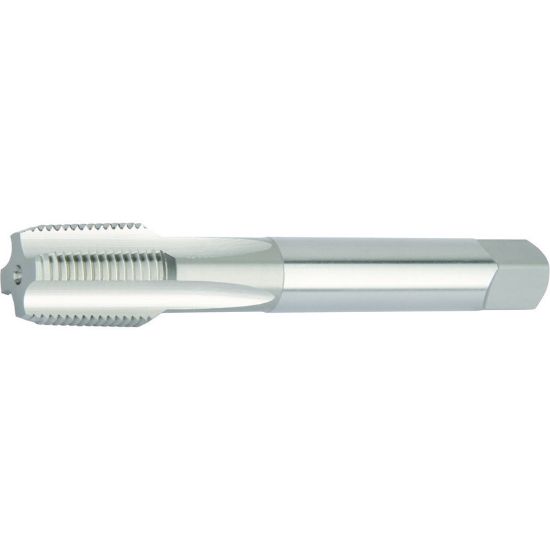

WIDIA/KENNAMETAL VTSTR8307 1-11.50TPI Pipe Spiral Flute Pipe HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSTR8307
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard DINSI
Shank/Pilot Dia 0.9843 25.00MM
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Square 0.7900
Tap Type Pipe
Thread Size 1"
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
