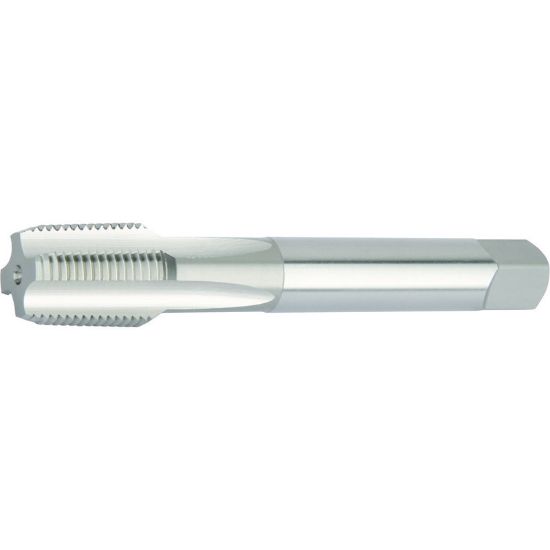

WIDIA/KENNAMETAL VTSTR8301 1/16-27.00TPI Pipe Spiral Flute Pipe HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSTR8301
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Made In USA No
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Thread Limit PIPE
Shank/Pilot Dia 0.2360 5.99MM
Drill Range 0.2417 6.14MM
Tap Style Pipe Spiral Flute
Thread Pitch 27.00TPI
Tap Type Pipe
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Square 0.1900
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Overall Len 3.5430 89.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
