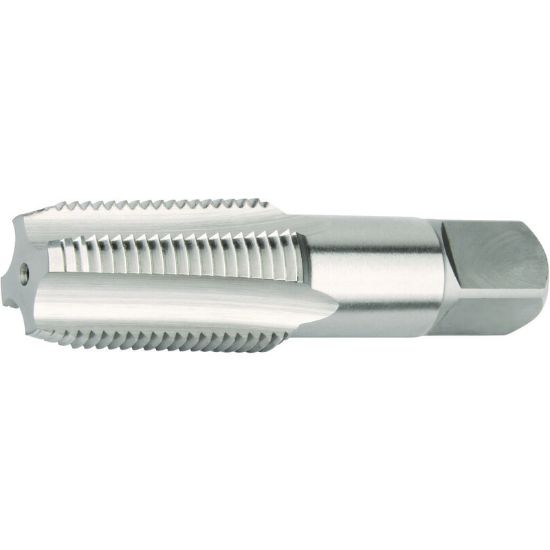

WIDIA/KENNAMETAL VTSTR8002 1/4-18.00TPI Pipe Spiral Flute Pipe HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSTR8002
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Pitch 18.00TPI
Thread Limit PIPE
Tap Square 0.4180
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Flute Direction R - Right
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Size 1/4"
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.4378 11.12MM
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
