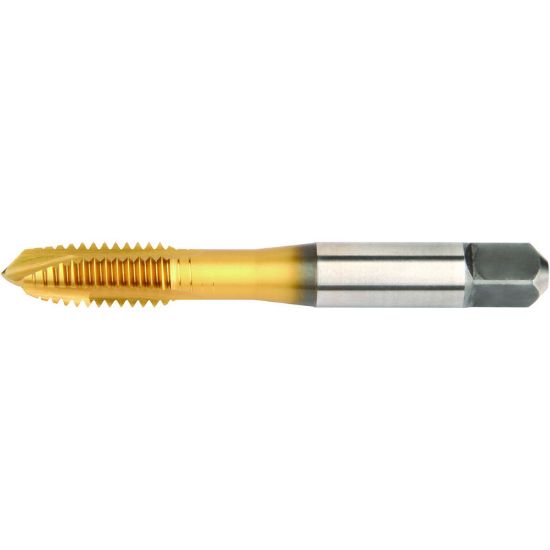

WIDIA/KENNAMETAL VTSPO7509 M8-1.25MM Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSPO7509
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Size M8
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Limit 6H
Dimension Standard JIS
Shank/Pilot Dia 0.2441 6.20MM
Overall Len 2.7600 70.10MM
Flutes/Inserts 3
Tap Square 0.1970
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
