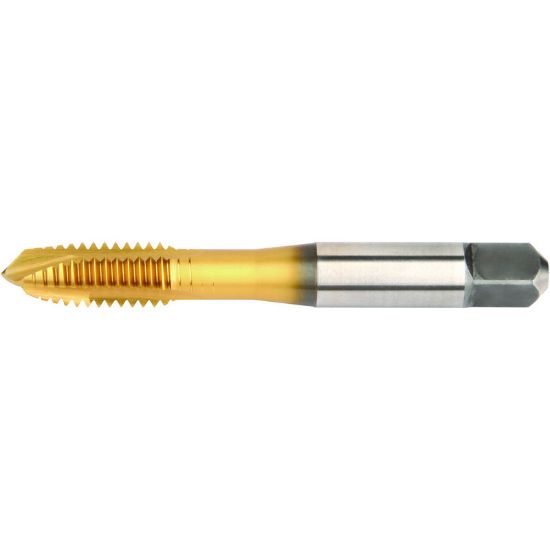

WIDIA/KENNAMETAL VTSPO7505 M3-0.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSPO7505
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Shank/Pilot Dia 0.1575 4.00MM
Tap Square 0.1260
Flutes/Inserts 2
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M3
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 1.8100 45.97MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimension Standard JIS
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
