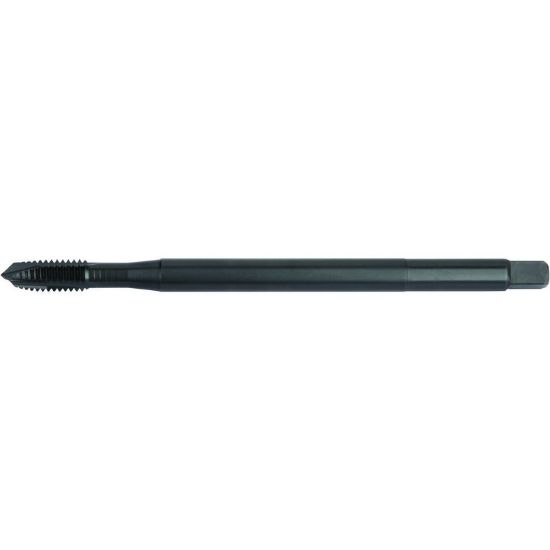

WIDIA/KENNAMETAL VTSPO5414 7/16-14.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSPO5414
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Coating DLC
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 14.00TPI
Overall Len 6.0000 152.40MM
Tap Square 0.2390
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Flutes/Inserts 3
Shank/Pilot Dia 0.3230 8.20MM - P
Tool Material Steel
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
