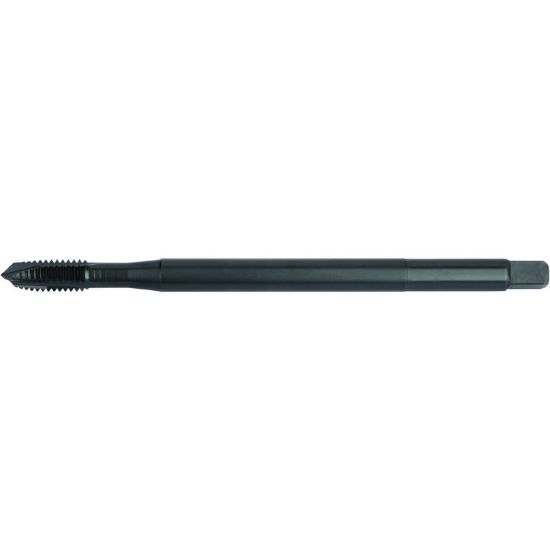

WIDIA/KENNAMETAL VTSPO5405 No.8-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSPO5405
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Coating DLC
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1290
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size No.8
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
