  • WIDIA/KENNAMETAL VTSPO5371 No.6-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal DLC

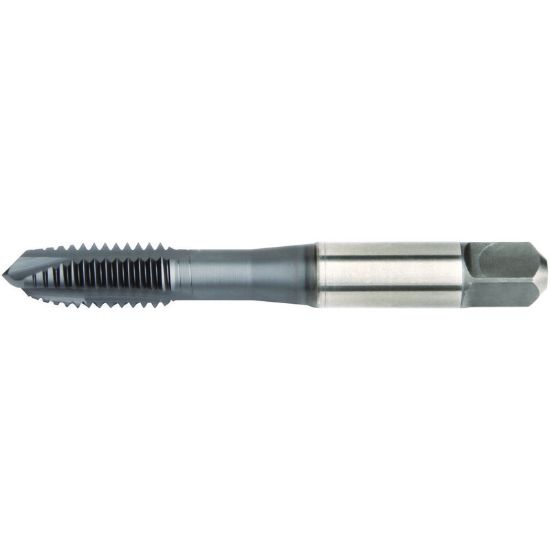

Picture of WIDIA/KENNAMETAL VTSPO5371 No.6-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal DLC

WIDIA/KENNAMETAL VTSPO5371 No.6-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSPO5371
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Coating DLC
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Overall Len 1.9900 50.55MM
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Square 0.1080
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.1410 3.58MM
Thread Size No.6
Thread Limit D11
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
