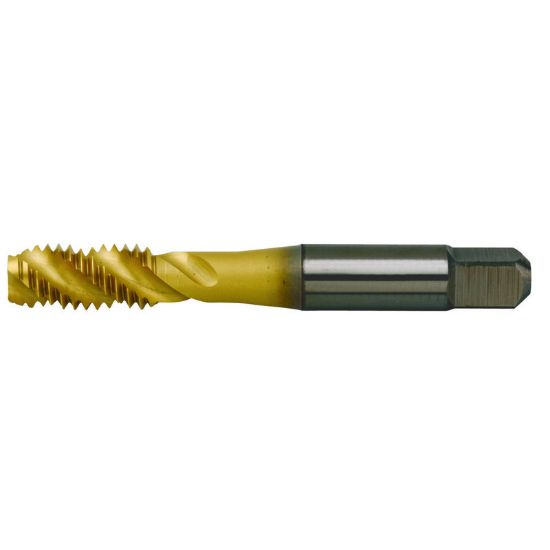

WIDIA/KENNAMETAL VTSFT7516 M16-2.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT7516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Dimension Standard JIS
Tool Material Steel
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit 6H
Tap Square 0.3940
Tap Style Cut Spiral Flute
Thread Pitch 2.00MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M16
Flute Direction R - Right
Shank/Pilot Dia 0.4921 12.50MM
Overall Len 3.7400 95.00MM
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
