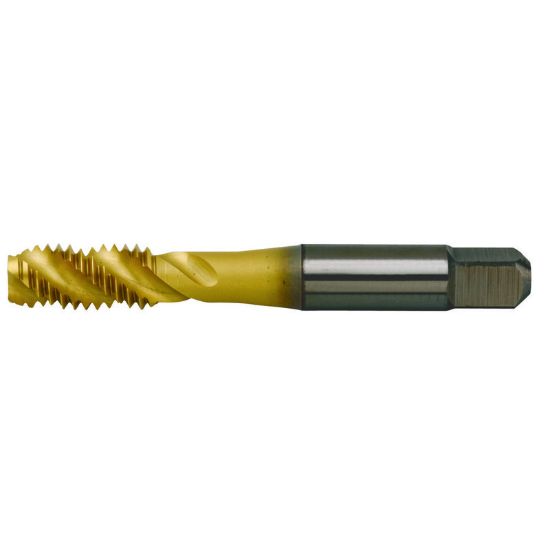

WIDIA/KENNAMETAL VTSFT7514 M14-2.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT7514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Tap Square 0.3150
Tap Chamfer 2.5P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Size M14
Tool Material Steel
Shank/Pilot Dia 0.4134 10.50MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard JIS
Flutes/Inserts 3
Thread Pitch 2.00MM
Overall Len 3.4600 87.88MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
