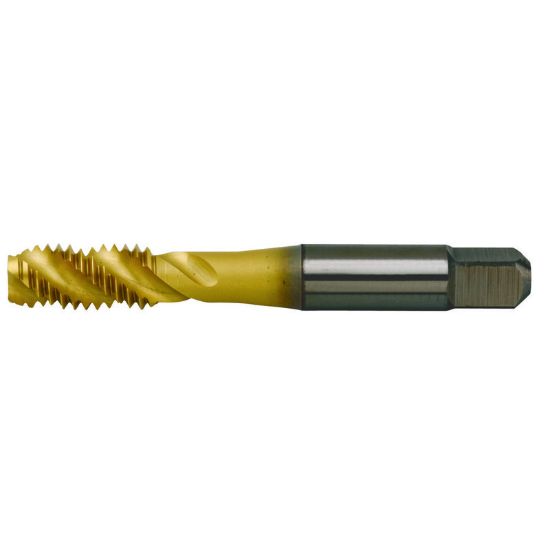

WIDIA/KENNAMETAL VTSFT7511 M12-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT7511
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size M12
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Overall Len 3.2300 82.04MM
Tap Square 0.2560
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3346 8.50MM
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 1.25MM
Dimension Standard JIS
Tool Material Steel
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
