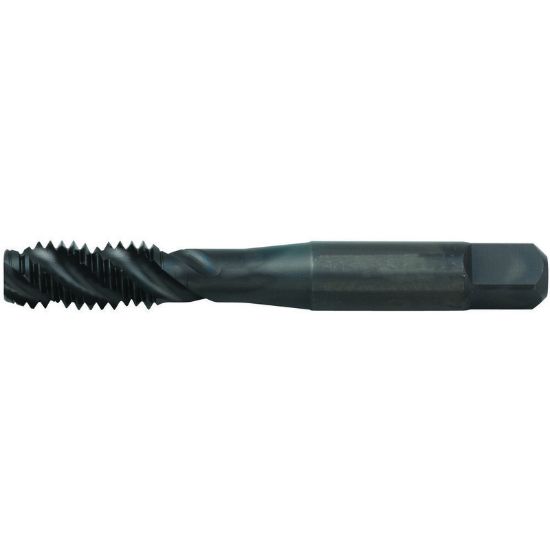

WIDIA/KENNAMETAL VTSFT5104 3/4-16.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT5104
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Over Sized Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Made In USA No
Performance Rating High Performance
Shipping State Ohio
Coating DLC
Package Size 1
Dimensional Specifications
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Pitch 16.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tap Chamfer 1.0P-2.0P
Thread Size 3/4"
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Tap Style Over Sized Bottom
Thread Limit GH7 +0.0035
Overall Len 4.2520 108.00MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Square 0.4390
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
