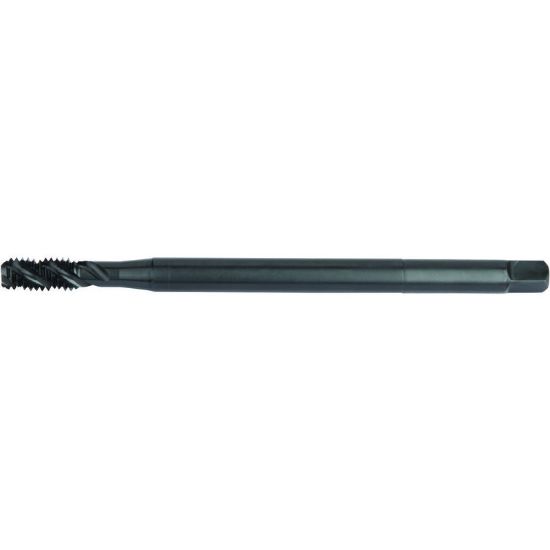

WIDIA/KENNAMETAL VTSFT-TC5432 3/8-16.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5432
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating DLC
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 6.0000 152.40MM
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Style Cut Spiral Flute
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tool Material Steel
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 1.0P-2.0P
Flute Direction R - Right
Tap Square 0.2840
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
