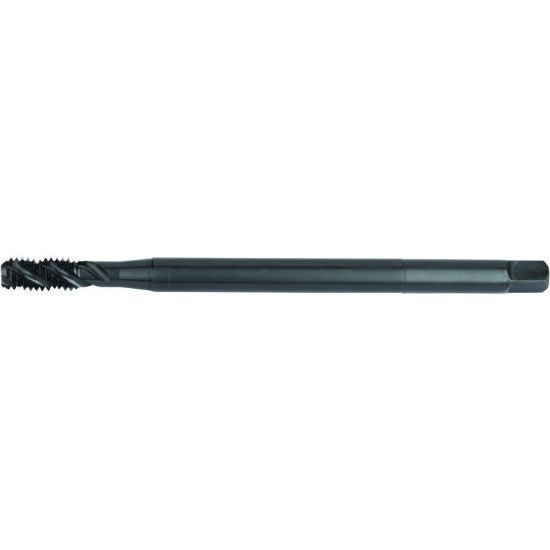

WIDIA/KENNAMETAL VTSFT-TC5428 No.10-32.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5428
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Performance Rating High Performance
Made In USA No
Coating DLC
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Chamfer 1.0P-2.0P
Overall Len 6.0000 152.40MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Thread Size No.10
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
