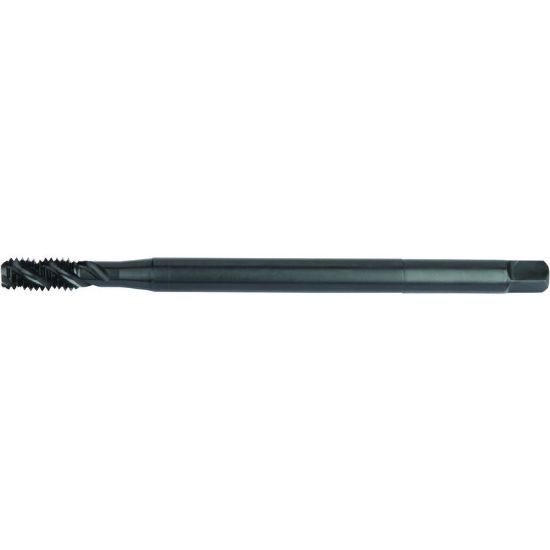

WIDIA/KENNAMETAL VTSFT-TC5426 No.6-32.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5426
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Ohio
Coating DLC
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Size No.6
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Pitch 32.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Tap Square 0.1100
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
