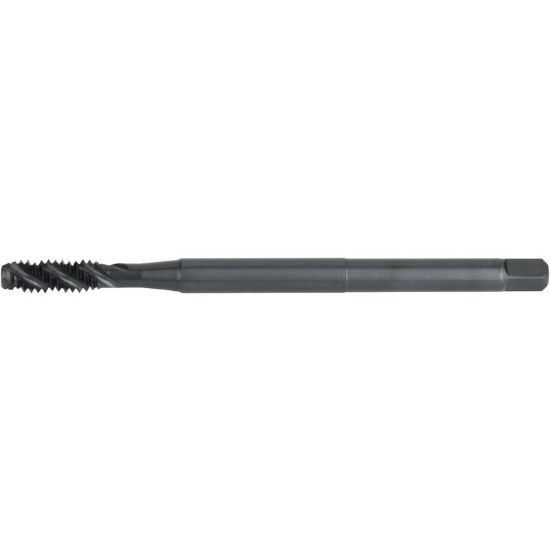

WIDIA/KENNAMETAL VTSFT-TC5423 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5423
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating DLC
Package Size 1
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 3
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Overall Len 4.0000 101.60MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Tap Square 0.1500
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
