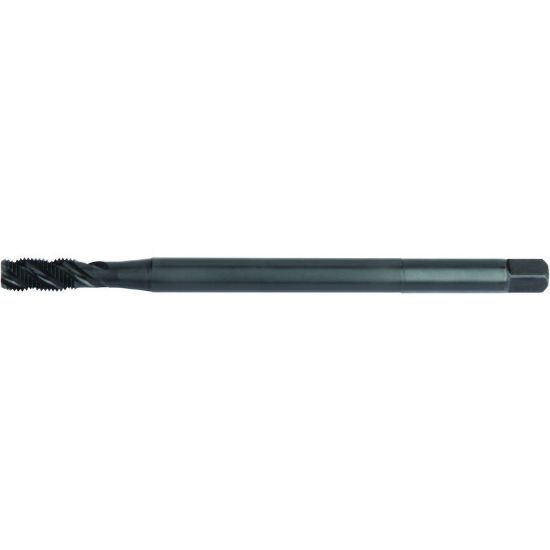

WIDIA/KENNAMETAL VTSFT-TC5418 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5418
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tap Chamfer 2.5P-3.0P
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Length Type Standard
Thread Size 5/8"
Overall Len 6.0000 152.40MM
Tap Square 0.3570
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
