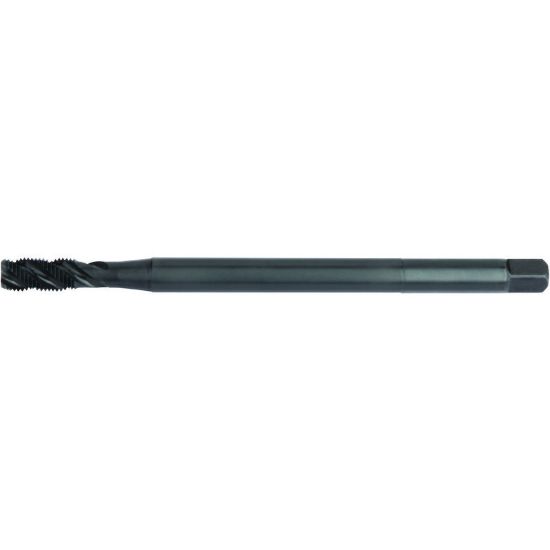

WIDIA/KENNAMETAL VTSFT-TC5410 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5410
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Coating DLC
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating High Temp, Titanium
Length Type Standard
Tap Chamfer 2.5P-3.0P
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Overall Len 6.0000 152.40MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
