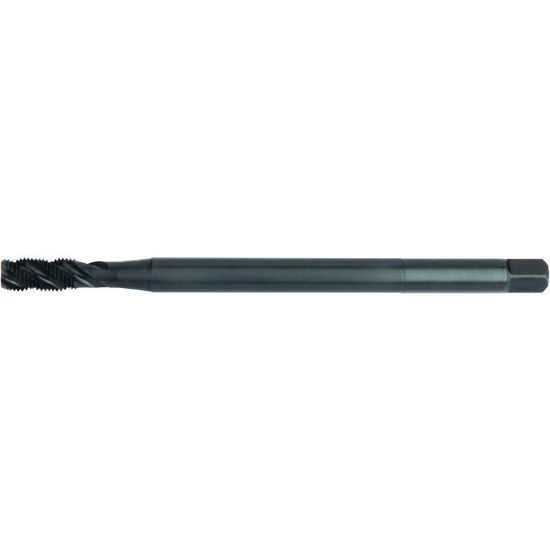

WIDIA/KENNAMETAL VTSFT-TC5403 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5403
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Tapping, Cut Tapping, Mod Bottom Tapping
Coating DLC
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size No.4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating High Temp, Titanium
Flutes/Inserts 2
Tap Square 0.1080
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Thread Pitch 40.00TPI
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
