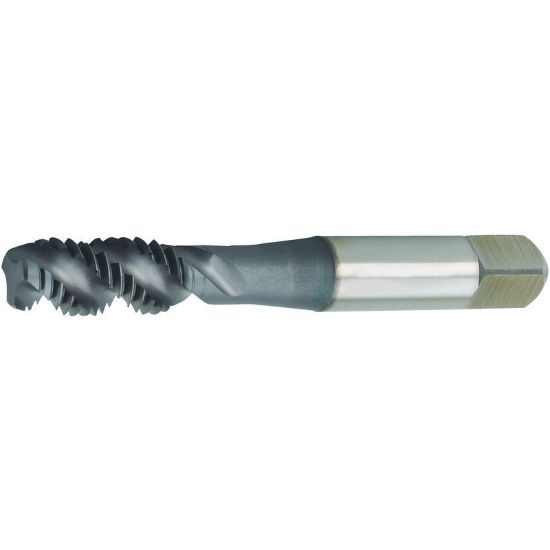

WIDIA/KENNAMETAL VTSFT-TC5104 3/4-16.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTSFT-TC5104
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating DLC
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Flutes/Inserts 4
Tap Style Over Sized Mod Bottom
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Flute Direction R - Right
Tap Square 0.4390
Length Type Standard
Overall Len 4.2520 108.00MM
Thread Limit GH7 +0.0035
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
