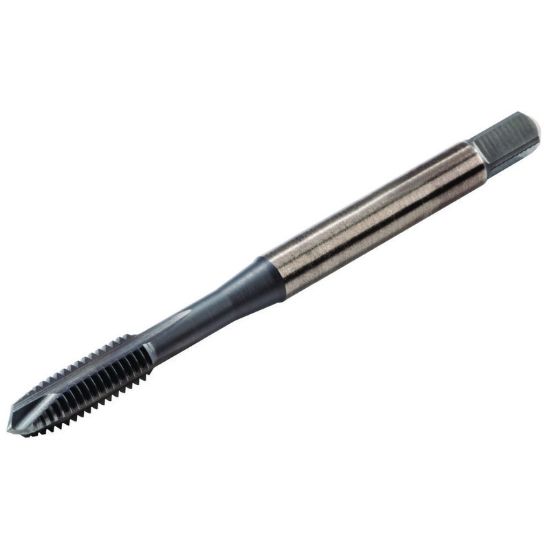

WIDIA/KENNAMETAL VTAFT5111 No.10-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE TiN + CrC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WIDVTAFT5111
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Package Size 1
Shipping State Ohio
Coating TiN + CrC
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Overall Len 2.3620 59.99MM
Flutes/Inserts 3
Thread Limit H5/GH5
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Style Cut Spiral Point
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
