  • WIDIA/KENNAMETAL VSM890D150Z04W100SN12 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.000

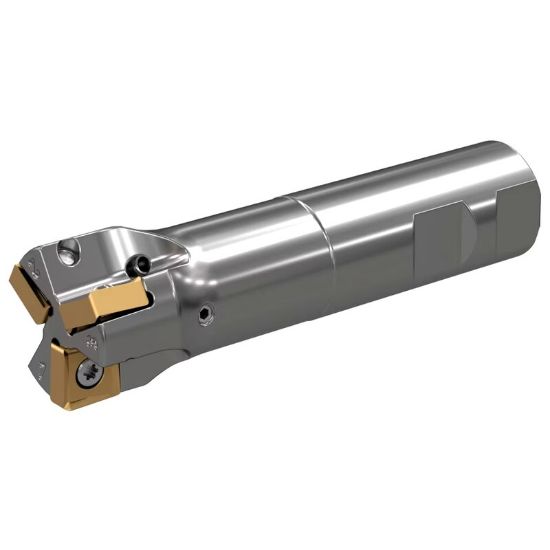

Picture of WIDIA/KENNAMETAL VSM890D150Z04W100SN12 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM890D150Z04W100SN12 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.000

ANSI: VSM890D150Z04W100SN12

ISO: VSM890D150Z04W100SN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6596130
Delivery date: 3-5 days
$443.44

Features And Benefits

True 0° wall and stepping down capability. Optimized chip gash design for proper chip evacuation. User-friendly pocket numbering system. Cutter bodies with internal coolant supply. Less bur creation on the workpiece.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 4
Dimension Description 1.500 x 1.000 x 0.387 x 4.530
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.5300 115.06MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Length Of Cut 0.3872 9.83MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SN
