  • WIDIA/KENNAMETAL VSM890D125Z03W100SN12 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

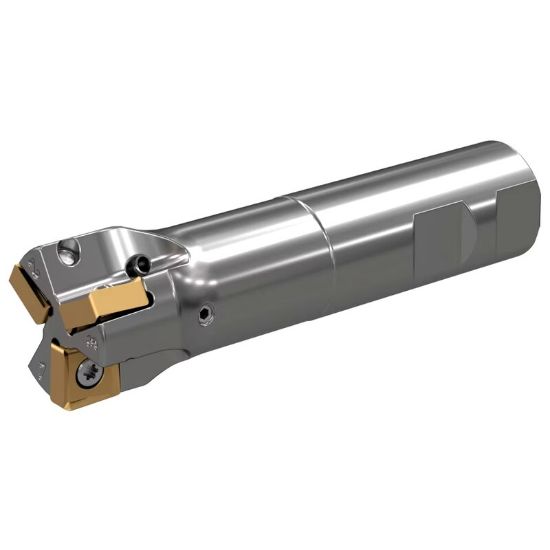

Picture of WIDIA/KENNAMETAL VSM890D125Z03W100SN12 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM890D125Z03W100SN12 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

ANSI: VSM890D125Z03W100SN12

ISO: VSM890D125Z03W100SN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6596129
Delivery date: 3-5 days
$394.53

Features And Benefits

True 0° wall and stepping down capability. Optimized chip gash design for proper chip evacuation. User-friendly pocket numbering system. Cutter bodies with internal coolant supply. Less bur creation on the workpiece.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 3
Dimension Description 1.250 x 1.000 x 0.387 x 4.530
Insert Size Ic 12
Overall Len 4.5300 115.06MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.3872 9.83MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
