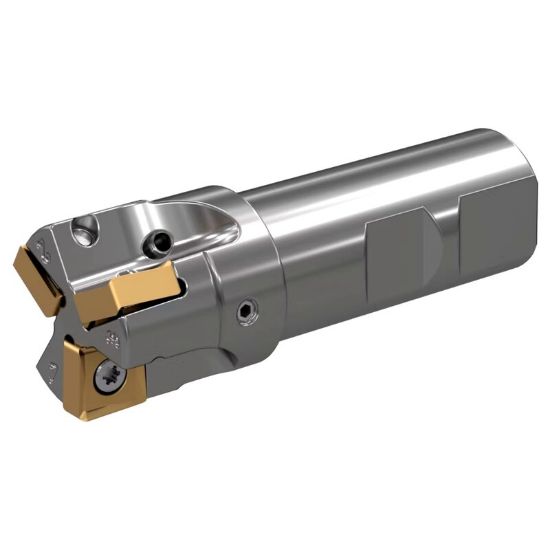

Picture of WIDIA/KENNAMETAL VSM890D032Z03B25SN12 90.0° Milling Cutter 1.259 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VSM890D032Z03B25SN12 90.0° Milling Cutter 1.259 Cutter Diameter Cylindrical 0.984

ANSI: VSM890D032Z03B25SN12

ISO: VSM890D032Z03B25SN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6596066
Delivery date: 3-5 days
$394.53

Features And Benefits

True 90° wall and stepping down capability. Otimized chip gash design for proper chip evacuation. User-friendly pocket numbering system. Cutter bodies with internal coolant supply. Less bur creation on the workpiece.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Tool Material Steel
Dimension Description 1.260 x 0.984 x 0.387 x 3.504
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Overall Len 3.5040 89.00MM
Insert Size Ic 12
Cutter Dia 1.2598 32.00MM
Flutes/Inserts 3
Length Of Cut 0.3873 9.84MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Hand R/L Right
Insert Style SN
