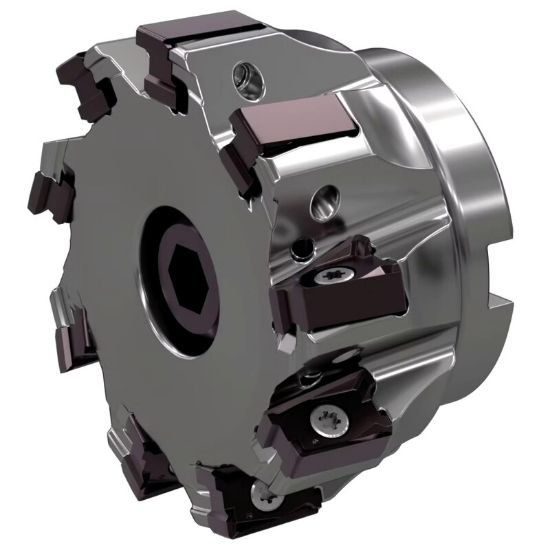

Picture of WIDIA/KENNAMETAL VSM490D500Z12S150XN15 90.0° Milling Cutter 5.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL VSM490D500Z12S150XN15 90.0° Milling Cutter 5.000 Cutter Diameter Face Mill 1.500

ANSI: VSM490D500Z12S150XN15

ISO: VSM490D500Z12S150XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873108
Delivery date: 3-5 days
$837.56

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Overall Len 2.3800 60.45MM
Length Of Cut 0.5910 15.01MM
Flutes/Inserts 12
Cutter Dia 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
