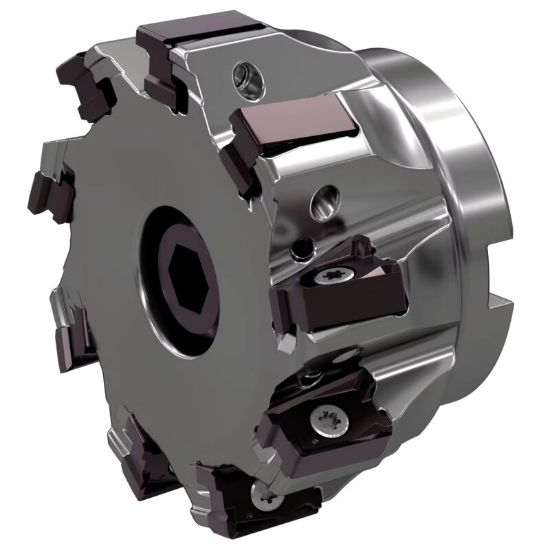

Picture of WIDIA/KENNAMETAL VSM490D400Z11S150XN15 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL VSM490D400Z11S150XN15 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: VSM490D400Z11S150XN15

ISO: VSM490D400Z11S150XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710599
Delivery date: 3-5 days
$876.43

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 11
Tool Material Steel
Machine Side Connection Size 1.5000 38.10MM
Length Of Cut 0.5910 15.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
Coolant Thru Yes
