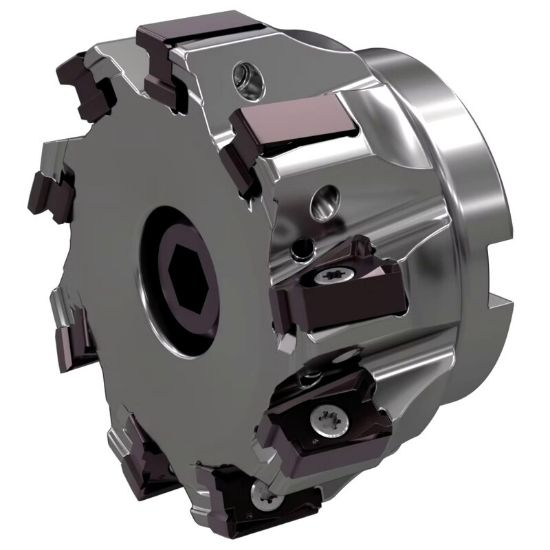

Picture of WIDIA/KENNAMETAL VSM490D400Z08S150XN15 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL VSM490D400Z08S150XN15 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: VSM490D400Z08S150XN15

ISO: VSM490D400Z08S150XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873106
Delivery date: 3-5 days
$819.09

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Length Of Cut 0.5910 15.01MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
