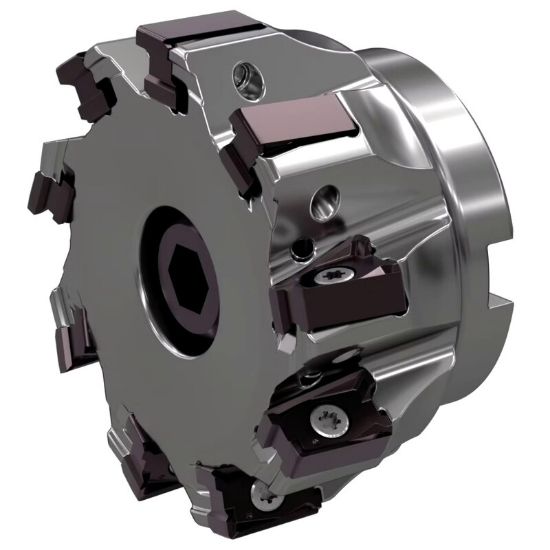

Picture of WIDIA/KENNAMETAL VSM490D300Z09S100XN15 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL VSM490D300Z09S100XN15 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: VSM490D300Z09S100XN15

ISO: VSM490D300Z09S100XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873105
Delivery date: 3-5 days
$694.57

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Application Side Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 9
Tool Material Steel
Overall Len 1.7500 44.45MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 0.5910 15.01MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
