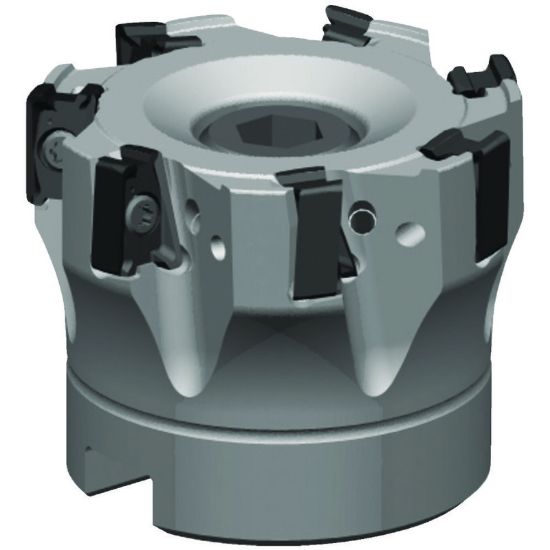

Picture of WIDIA/KENNAMETAL VSM490D300Z06S100XN10 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL VSM490D300Z06S100XN10 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: VSM490D300Z06S100XN10

ISO: VSM490D300Z06S100XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425402
Delivery date: 3-5 days
$626.15

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium, and fine pitch cutter density available. Cutters following Japanese Industry Standard (JIS) are available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Length Of Cut 0.3940 10.01MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
