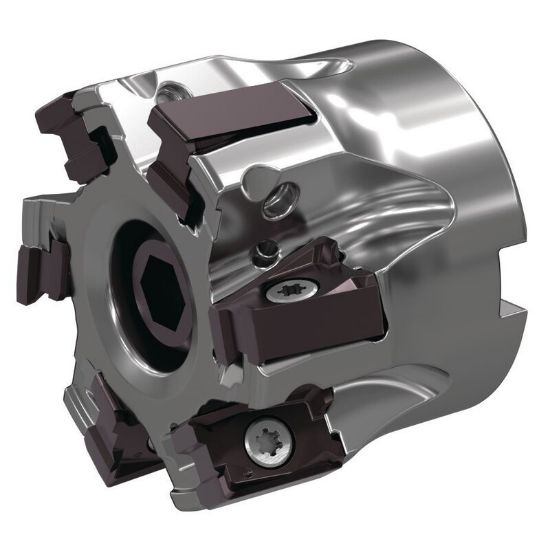

Picture of WIDIA/KENNAMETAL VSM490D250Z07S100XN15 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL VSM490D250Z07S100XN15 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

ANSI: VSM490D250Z07S100XN15

ISO: VSM490D250Z07S100XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710597
Delivery date: 3-5 days
$608.11

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Flutes/Inserts 7
Overall Len 1.7500 44.45MM
Tool Material Steel
Length Of Cut 0.5910 15.01MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
