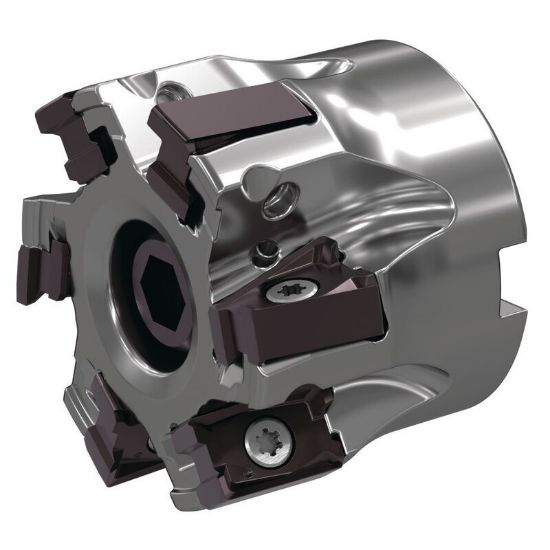

Picture of WIDIA/KENNAMETAL VSM490D250Z06S075XN15 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL VSM490D250Z06S075XN15 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

ANSI: VSM490D250Z06S075XN15

ISO: VSM490D250Z06S075XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710596
Delivery date: 3-5 days
$593.61

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5750 40.01MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Insert Style XN
