  • WIDIA/KENNAMETAL VSM490D150Z05W125XN10 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

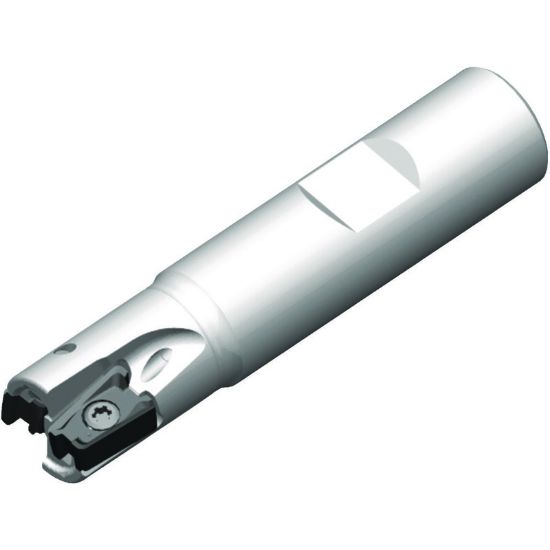

Picture of WIDIA/KENNAMETAL VSM490D150Z05W125XN10 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM490D150Z05W125XN10 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

ANSI: VSM490D150Z05W125XN10

ISO: VSM490D150Z05W125XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425479
Delivery date: 3-5 days
$476.77

Features And Benefits

True 90° roughing tool with embedded finishing capabilities all in one tool. Best-in-class wall finish in axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium, and fine pitch cutter density available. Cutters following Japanese Industry Standard (JIS) are available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 5
Dimension Description 1.500 x 1.250 x 0.394 x 4.500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Length Of Cut 0.3940 10.01MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
