  • WIDIA/KENNAMETAL VSM490D150Z03W125XN15 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

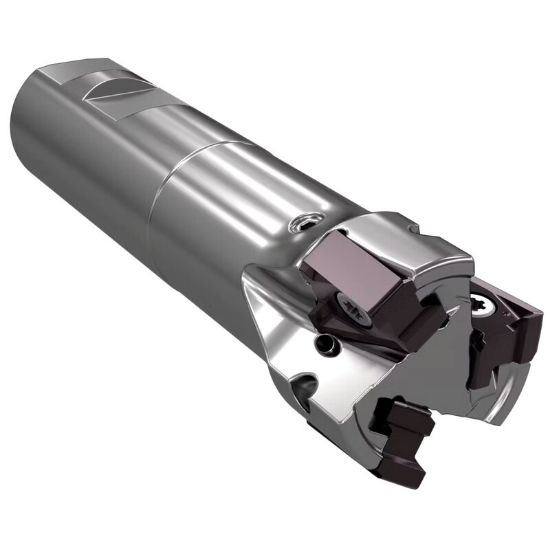

Picture of WIDIA/KENNAMETAL VSM490D150Z03W125XN15 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM490D150Z03W125XN15 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

ANSI: VSM490D150Z03W125XN15

ISO: VSM490D150Z03W125XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873070
Delivery date: 3-5 days
$411.96

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Dimension Description 1.500 x 1.250 x 0.591 x 4.530
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Overall Len 4.5300 115.06MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Hand R/L Right
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
