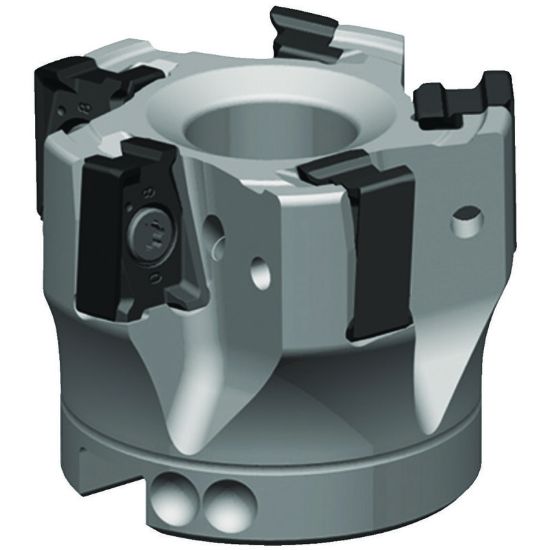

Picture of WIDIA/KENNAMETAL VSM490D125Z12S40XN15 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.574

WIDIA/KENNAMETAL VSM490D125Z12S40XN15 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.574

ANSI: VSM490D125Z12S40XN15

ISO: VSM490D125Z12S40XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5873227
Delivery date: 3-5 days
$1,419.11

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 90° to run preciseapplications in multiple axial passes. Strong concept to run up to 15mm (.590) depth of cut. Effective internal coolant feature, reaching the cuttingedge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 4.9210 124.99MM
Machine Side Connection Size 1.5748 40.00MM
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.4810 63.02MM
Flutes/Inserts 12
Cutting & Machining Properties
Hand R/L Right
Insert Style XN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
