  • WIDIA/KENNAMETAL VSM490D125Z05W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

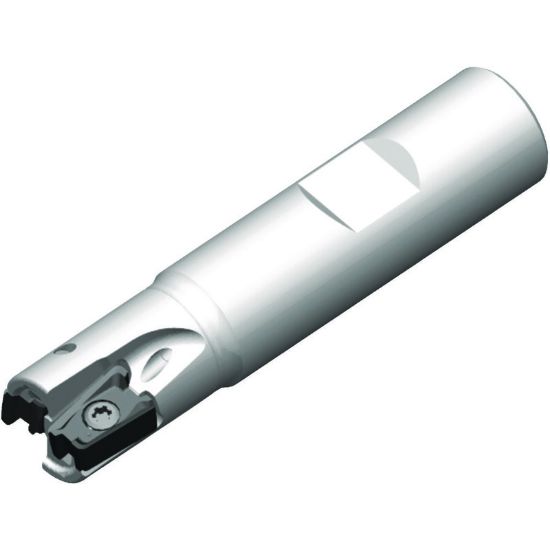

Picture of WIDIA/KENNAMETAL VSM490D125Z05W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM490D125Z05W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VSM490D125Z05W125XN10

ISO: VSM490D125Z05W125XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425478
Delivery date: 3-5 days
$446.44

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Dimension Description 1.250 x 1.250 x 0.394 x 4.000
Overall Len 4.0000 101.60MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
