  • WIDIA/KENNAMETAL VSM490D125Z04W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

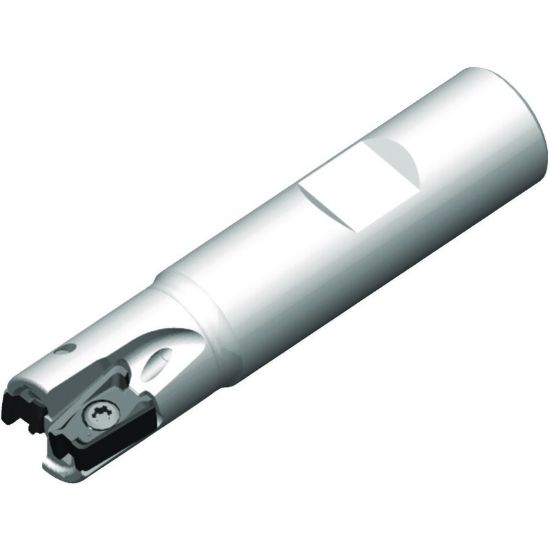

Picture of WIDIA/KENNAMETAL VSM490D125Z04W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VSM490D125Z04W125XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VSM490D125Z04W125XN10

ISO: VSM490D125Z04W125XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425477
Delivery date: 3-5 days
$426.41

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Overall Len 4.0000 101.60MM
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Length Of Cut 0.3940 10.01MM
Tool Material Steel
Flutes/Inserts 4
Machine Side Connection Size 1.2500 31.75MM
Dimension Description 1.250 x 1.250 x 0.394 x 4.000
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
