  • WIDIA/KENNAMETAL VSM490D125Z04W100XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

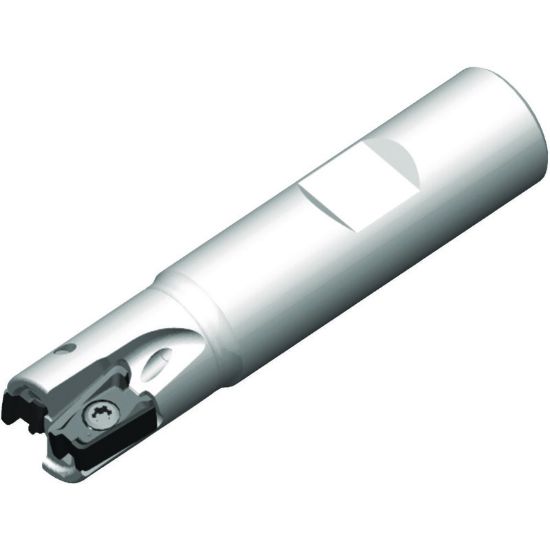

Picture of WIDIA/KENNAMETAL VSM490D125Z04W100XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D125Z04W100XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D125Z04W100XN10

ISO: VSM490D125Z04W100XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425476
Delivery date: 3-5 days
$426.41

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Negative
Made In USA No
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 4
Insert Size Ic 10
Tool Material Steel
Dimension Description 1.250 x 1.000 x 0.394 x 3.750
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Length Of Cut 0.3940 10.01MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
