  • WIDIA/KENNAMETAL VSM490D125Z04W075XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 0.750

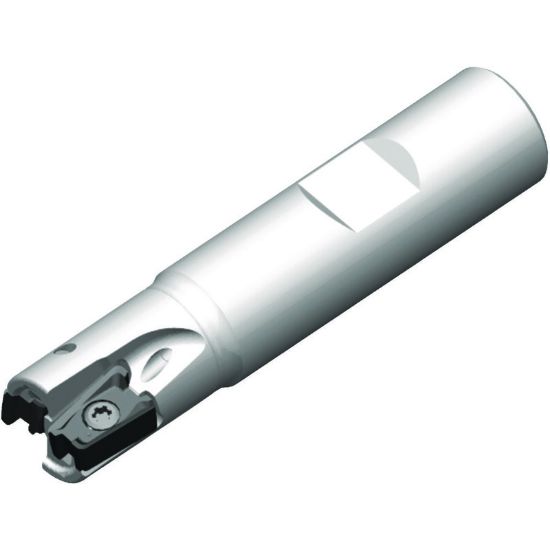

Picture of WIDIA/KENNAMETAL VSM490D125Z04W075XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL VSM490D125Z04W075XN10 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 0.750

ANSI: VSM490D125Z04W075XN10

ISO: VSM490D125Z04W075XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425475
Delivery date: 3-5 days
$426.41

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Length Of Cut 0.3940 10.01MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Dimension Description 1.250 x 0.750 x 0.394 x 3.250
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Overall Len 3.2500 82.55MM
Flutes/Inserts 4
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
