  • WIDIA/KENNAMETAL VSM490D125Z03W100XN15 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

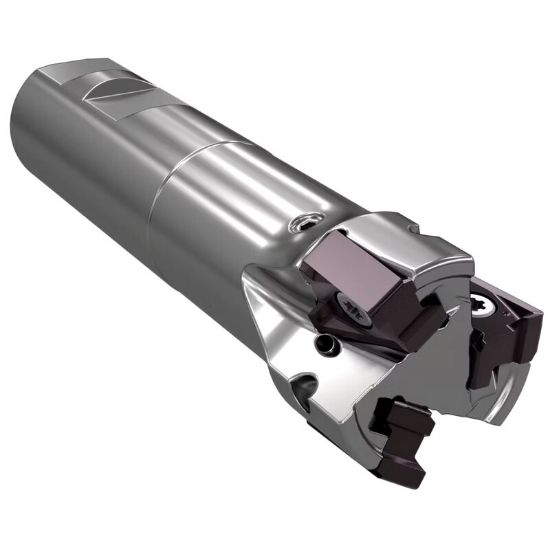

Picture of WIDIA/KENNAMETAL VSM490D125Z03W100XN15 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D125Z03W100XN15 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D125Z03W100XN15

ISO: VSM490D125Z03W100XN15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5710591
Delivery date: 3-5 days
$359.93

Features And Benefits

Superior wall and surface finish capabilities. “Stepless” solution. True 0° to run preciseapplications in multiple axial passes. Strong concept to run up to .590 (15mm) depth of cut. Effective internal coolant feature, reaching the cutting edge precisely.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Made In USA No
Dimensional Specifications
Dimension Description 1.250 x 1.000 x 0.591 x 4.530
Flutes/Inserts 3
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.5910 15.01MM
Insert Size Ic 15
Overall Len 4.5300 115.06MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
