  • WIDIA/KENNAMETAL VSM490D100Z08S3175XN15JIS 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.250

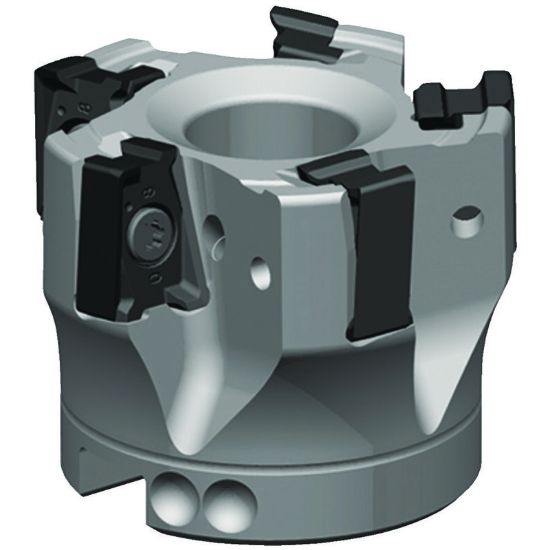

Picture of WIDIA/KENNAMETAL VSM490D100Z08S3175XN15JIS 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.250

WIDIA/KENNAMETAL VSM490D100Z08S3175XN15JIS 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.250

ANSI: VSM490D100Z08S3175XN15JIS

ISO: VSM490D100Z08S3175XN15JIS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6342808
Delivery date: 3-5 days
$945.57

Features And Benefits

True 90° roughing tool with imbedded finishing capability in one. Best in class wall finish at axial stepping down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Coarse, medium and fine pitch cutter density available. Cutters following Japanese Industry Standard JIS are available.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Tool Material Steel
Overall Len 1.9690 50.01MM
Length Of Cut 0.5910 15.01MM
Flutes/Inserts 8
Insert Size Ic 15
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XN
