  • WIDIA/KENNAMETAL VSM490D100Z04C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

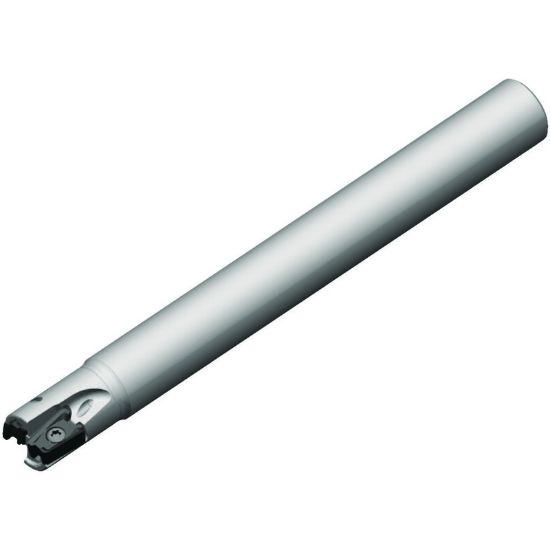

Picture of WIDIA/KENNAMETAL VSM490D100Z04C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VSM490D100Z04C100XN10L670 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D100Z04C100XN10L670

ISO: VSM490D100Z04C100XN10L670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425448
Delivery date: 3-5 days
$418.39

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.3940 10.01MM
Flutes/Inserts 4
Insert Size Ic 10
Overall Len 6.7000 170.18MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Dimension Description 1.000 x 1.000 x 0.394 x 6.700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
