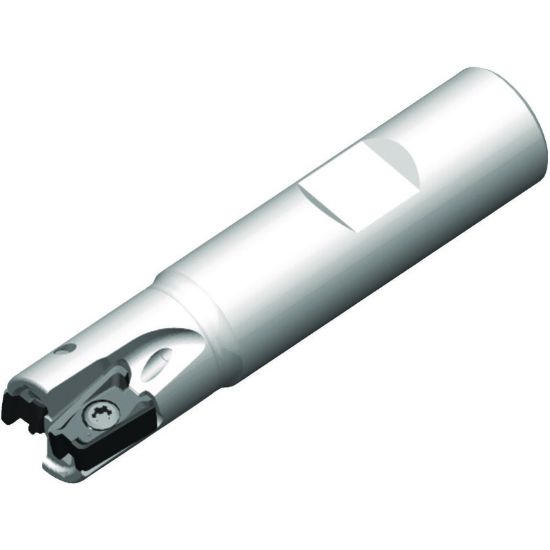

WIDIA/KENNAMETAL VSM490D100Z03W100XN10 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VSM490D100Z03W100XN10

ISO: VSM490D100Z03W100XN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425473
Delivery date: 3-5 days
$378.33

Features And Benefits

True 0° roughing tool with imbedded finishing capability all in one tool. Best-in-class wall finish at axial stepping-down jobs. Lower cutting forces and real soft cutting action. Perfect fit for taper 40 spindles and driven units. Reduced shanks available.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 0.394 x 3.750
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.3940 10.01MM
Overall Len 3.7500 95.25MM
Insert Size Ic 10
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style XN
